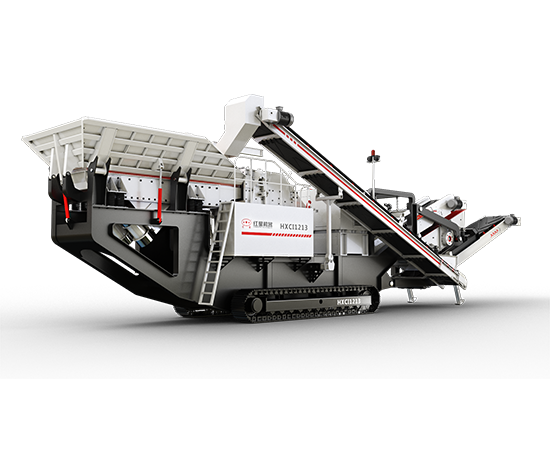

The Wotetrack crawler-mounted mobile crushing and screening station is born from the advanced concepts of similar products in Northern Europe, yet was independently developed to suit domestic conditions. Utilizing a hydraulic-driven crawler system for propulsion, it stands as a high-performance piece of mobile equipment for stone crushing and screening. The crusher, vibrating screen, power system, and hydraulic system are all securely mounted on a robust chassis, which is supported by crawler tracks; this configuration enables self-propulsion and ensures ease of operation and maintenance.

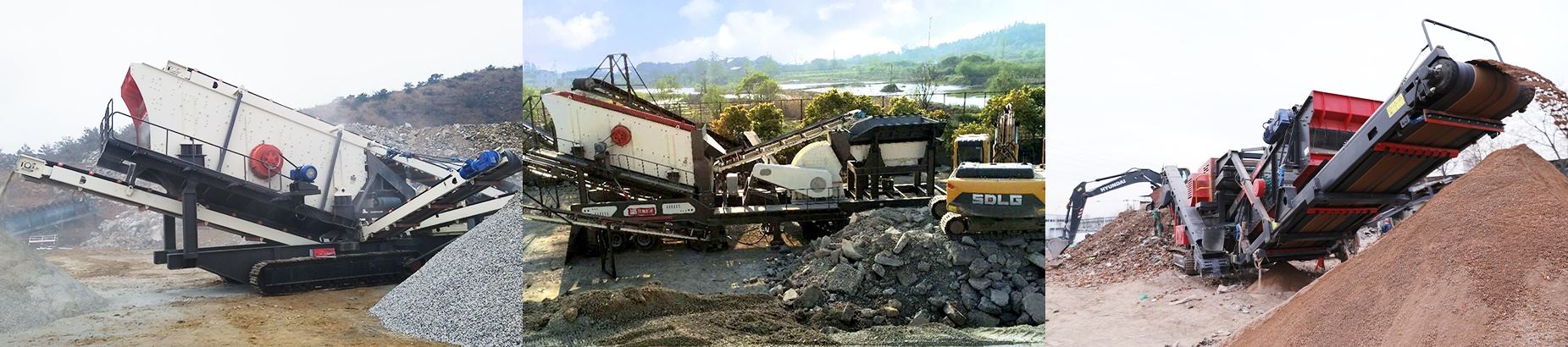

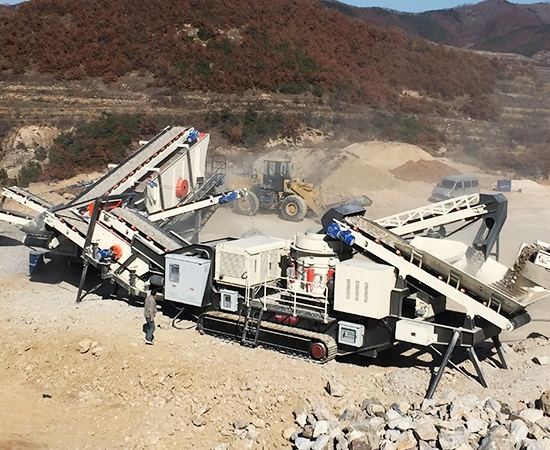

It is suitable for the crushing and screening of a wide variety of materials—including river pebbles, granite, construction waste, coal gangue, and road aggregate—and is particularly well-suited for short-term projects or operations involving the crushing and screening of dispersed material sources.
Materials are fed uniformly and quantitatively into the main crusher via a vibrating feeder; within the crushing chamber, they undergo processes such as compression, impact, or shearing to be reduced to the desired particle size. The crushed materials then fall onto a vibrating screen (typically featuring single, double, or multi-layer mesh), where they are classified according to particle size; finished products meeting the required specifications pass through the screen and are discharged via a belt conveyor.
Equipped with advanced European-standard main units featuring optimized chamber designs and high-quality wear parts, ensuring superior operational efficiency.
Utilizes brand-name engines compliant with the latest emission standards, alongside advanced hydraulic and power systems, to achieve higher fuel efficiency. Enhanced internal sealing and an air self-circulation system work to effectively minimize dust emissions.
Features appropriately positioned access ladders and platforms, various safety guards, and locking mechanisms. A one-touch automatic start-and-stop function further safeguards both personnel and equipment.
Offers a variety of power configurations—including fully hydraulic, Type D (diesel-electric hybrid), and Type E (external mains power)—allowing users to select the optimal option based on practical factors such as fuel costs, operating expenses, and the availability of grid power.
Factory Direct Supply: Enjoy Wholesale Pricing!
If you are interested in our products, please contact us immediately.
| Series | Standard Model | On Board Equipment | On Board Equipment | Processing Capacity (t/h) | Transport Dimensions (mm) |
| WOTETRACK MOBILE JAW CRUSHING STATION |
WT96 | HVF9538 | CJ96 | 70-150 | 13500×2800×3500 |
| WT106 | HVF1140 | CJ106 | 90-250 | 15100×2800×3500 | |
| WT120 | HVF1242 | CJ120 | 110-350 | 16000×3100×3800 | |
| WOTETRACK MOBILE IMPACT CRUSHING STATION |
WT1110S | HVF9538 | C11110M | 60-150 | 16500×3400×3600 |
| WT1213S | HVF1242 | Cl1213M | 80-200 | 17000×3460×3700 | |
| WT1316 | HVF1242 | Cl1316 | 100-300 | 15000×3300×3800 | |
| WOTETRACK MOBILE CONE CRUSHING STATION |
WT200S | 一 | HPM200 | 80-150 | 16400×3300×3700 |
| WT300S | 一 | HPM300 | 100-200 | 17800×3400×370C | |
| WT160S | 一 | SC160 | 70-200 | 17000×3300×3700 | |
| WT250 | 一 | SC250 | 100-250 | 15500×3300×3800 | |
| WOTETRACK MOBILE IMPACT SAND MAKING STATION |
WT0818 | 一 | HV10818 | 70-150 | 15000×3100×3700 |
| WT0926 | 一 | HVI0926 | 85-200 | 16000×3300×3800 | |
| WOTETRACK MOBILE SCREENING STATION |
ST722 | 一 | ZS1548H | 60-400 | 15700×3180×3500 |
| ST833 | 一 | 3YK1560H | 60-300 | 15500×3100×3500 | |
| ST833S | 一 | 3YK1560H | 60-300 | 17500×3100×3500 | |
| ST1083 | 一 | 3YK1860H | 80-400 | 16500×3400×3650 | |
| ST1083S | 一 | 3YK1860H | 80-400 | 18500×3400×3650 | |
| ST6203 | 一 | THS2060 | 100-500 | 18500×3260×3600 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Series | Standard Model | Processing Capacity (t/h) |
| WOTETRACK MOBILE JAW CRUSHING STATION | WT96 | 70-150 |
| WT106 | 90-250 | |
| WT120 | 110-350 | |
| WOTETRACK MOBILE IMPACT CRUSHING STATION | WT1110S | 60-150 |
| WT1213S | 80-200 | |
| WT1316 | 100-300 | |
| WOTETRACK MOBILE CONE CRUSHING STATION | WT200S | 80-150 |
| WT300S | 100-200 | |
| WT160S | 70-200 | |
| WT250 | 100-250 | |
| WOTETRACK MOBILE IMPACT SAND MAKING STATION | WT0818 | 70-150 |
| WT0926 | 85-200 | |
| WOTETRACK MOBILE SCREENING STATION | ST722 | 60-400 |
| ST833 | 60-300 | |
| ST833S | 60-300 | |
| ST1083 | 80-400 | |
| ST1083S | 80-400 | |
| ST6203 | 100-500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
