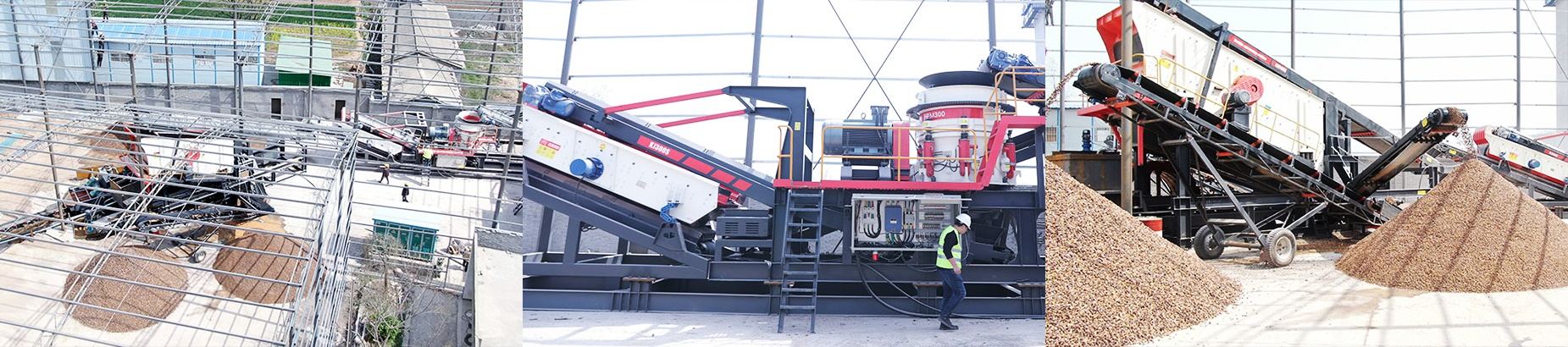

Modular crushing plants offer high productivity and meet specific working environments. These structures are delivered in modular form, allowing for convenient operation on a single unit and facilitating transport.
Suitable for materials such as granite, basalt, rock, limestone, quartz, coal gangue, and construction waste.

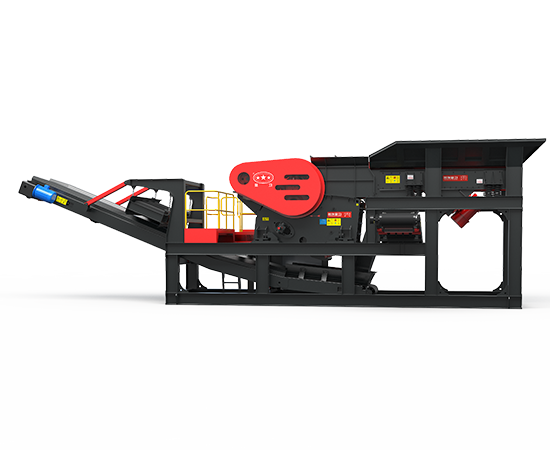

Comprising a single integrated unit, the system processes raw stone—from feeding through crushing and screening—directly in accordance with user specifications. Capable of relocating between various sites within a multi-point quarry, the equipment facilitates rapid deployment, offering exceptional mobility and high production capacity. It features intelligent remote control capabilities, enabling one-touch startup and operation, and can be fully managed by a single individual.
The equipment is highly integrated and can be quickly put into operation after simple lifting, featuring easy and rapid on-site installation.
The frame structurelayout enables each crushing and screening plant to save the cost and time of making concretefoundation on site,which greatly reduces the pre-productionpreparation time and investment.
The high perlormance main machine is produced by the latestindustry technology, with high efficiency, high output, less failure,easy opeation and maintenance,stable and reliable operation.
The whole machine is unfolded when working, and can be easilycontracted and folded when transporting,minimizing disassembling and meeting the smooth transportation on domestic highway.
Factory Direct Supply: Enjoy Wholesale Pricing!
If you are interested in our products, please contact us immediately.
| Series | Standard Model | On board equipment | On board equipment | Processing Capability (t/h) | Transport dimensions (mm) |
| JAW CRUSHER | KJ98 | GZDT9538 | HDX98 | 90-350 | 12750×3020×3850 |
| KJ110 | GZDT1145B | HDX110 | 120-450 | 13050×3050×4000 | |
| IMPACT CRUSHING PLANT | KJ1213 | GZDT9538 | C11213 | 80-320 | 12970×3020×3920 |
| KJ1316 | GZDT1145B | C11316 | 100-400 | 13290×3050×4080 | |
| CONE CRUSHING STATION | KJ300 | - | HPM300C1 | 60-280 | 15650×3270×3780 |
| KJ250 | - | SC250F1 | 90-350 | 15600×32700×3800 | |
| SAND MAKING STATION | KJ0926 | - | HVI0926 | 85-240 | 15400×2770×3780 |
| KJ1040 | - | HVI1040 | 120-284 | 15400×2920×3970 | |
| SCREENING STATION | KJ1865S-3 | - | 3HX1865 | 65-350 | 15200×2900×3000 |
| KJ2165S-4 | - | 4HX2165 | 85-500 | 15200×2900×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Series | Standard Model | Processing Capability (t/h) |
Transport dimensions (mm) |
| JAW CRUSHER | KJ98 | 90-350 | 12750×3020×3850 |
| KJ110 | 120-450 | 13050×3050×4000 | |
| IMPACT CRUSHING PLANT | KJ1213 | 80-320 | 12970×3020×3920 |
| KJ1316 | 100-400 | 13290×3050×4080 | |
| CONE CRUSHING STATION | KJ300 | 60-280 | 15650×3270×3780 |
| KJ250 | 90-350 | 15600×32700×3800 | |
| SAND MAKING STATION | KJ0926 | 85-240 | 15400×2770×3780 |
| KJ1040 | 120-284 | 15400×2920×3970 | |
| SCREENING STATION | KJ1865S-3 | 65-350 | 15200×2900×3000 |
| KJ2165S-4 | 85-500 | 15200×2900×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
