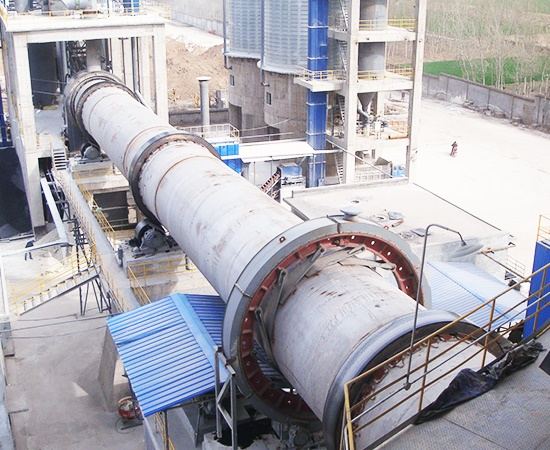

Dryers are capable of drying a wide variety of materials and are commonly utilized in sectors such as mineral processing, building materials, metallurgy, and chemical engineering to dry materials of specific moisture levels or particle sizes. Rotary dryers demonstrate strong adaptability to various materials, are simple to operate, and enjoy widespread application.
It is primarily used in industries such as fertilizers, metallurgy, chemicals, and building materials for the efficient dewatering of bulk materials, including clay, slag, coal, and gypsum.
As material enters the interior of the dryer's rotating drum, it undergoes drying through either co-current or counter-current contact with the hot air flowing through the cylinder, or through effective contact with the heated inner walls. Upon drying, the finished product is discharged from the lower section of the opposite end. During the drying process, aided by the slow rotation of the drum and under the influence of gravity, the material moves from the higher end toward the lower end. The inner wall of the drum is fitted with lifting flights that continuously scoop up and cascade the material; this action significantly increases the material's surface area exposed to heat, thereby enhancing the drying rate and facilitating the material's forward movement.
The intelligent support roller system employs diverse lubrication methods to effectively minimize wear and prevent shaft breakage, thereby extending service life. The robust steel drum is highly resistant to abrasion and built for exceptional durability.
High-velocity airflow ensures thorough dispersion of materials, maximizing the surface area available for drying. This significantly boosts heat transfer efficiency and expands the effective drying zone, resulting in a rapid and highly efficient process.
Featuring excellent sealing capabilities and a built-in dust removal mechanism, the system minimizes dust leakage to ensure environmentally friendly operation. The multi-configuration lifting flights facilitate superior contact between the materials and hot air, enhancing efficiency and preventing unnecessary energy waste.
An advanced internal structure enhances self-cleaning and heat conduction capabilities, effectively preventing material adhesion to the inner walls of the drum. This adaptability allows the system to handle a wider range of material moisture levels and viscosities, delivering outstanding drying results.
Factory Direct Supply: Enjoy Wholesale Pricing!
If you are interested in our products, please contact us immediately.
| Spec./m | Shell Cubage | Capacity(t/h) | Installation(%) | Highest Inlet Air Temperature | Main Motor |
| Φ 1.2×8 | 9 | 1.9-2.4 | 3-5 | 700-800 | 7.5 |
| Φ1.2 ×10 | 11.3 | 2.4-3 | 3-5 | 700-800 | 7.5 |
| Φ 1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 |
| Φ 1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 |
| Φ1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 |
| Φ 1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 |
| Φ 1.8×14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 |
| Φ 2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 |
| Φ 2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 |
| Φ 2.2×16 | 60.8 | 13-16.2 | 3-5 | 700-800 | 22 |
| Φ 2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 |
| Φ 2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 |
| Φ 2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 |
| Φ 2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 |
| Φ 2.6×24 | 127.4 | 27.2-34 | 3-5 | 700-800 | 55 |
| Φ 3×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 |
| Φ 3×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 |
| Φ 3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 |
| Φ 3.6×28 | 285 | 60.8-76 | 3-5 | 700-800 | 160 |
| Spec./m | Capacity(t/h) | Highest Inlet Air Temperature |
| Φ 1.2×8 | 1.9-2.4 | 700-800 |
| Φ1.2 ×10 | 2.4-3 | 700-800 |
| Φ 1.5×12 | 4.5-5.7 | 700-800 |
| Φ 1.5×14 | 5.3-6.6 | 700-800 |
| Φ1.5×15 | 5.7-7.1 | 700-800 |
| Φ 1.8×12 | 6.5-8.1 | 700-800 |
| Φ 1.8×14 | 7.6-9.5 | 700-800 |
| Φ 2.2×12 | 9.7-12.2 | 700-800 |
| Φ 2.2×14 | 11.4-14.2 | 700-800 |
| Φ 2.2×16 | 13-16.2 | 700-800 |
| Φ 2.4×14 | 13.5-16.9 | 700-800 |
| Φ 2.4×18 | 17.4-21.7 | 700-800 |
| Φ 2.4×20 | 19.3-24.1 | 700-800 |
| Φ 2.4×22 | 21.2-26.5 | 700-800 |
| Φ 2.6×24 | 27.2-34 | 700-800 |
| Φ 3×20 | 30.1-37.7 | 700-800 |
| Φ 3×25 | 37.7-47.1 | 700-800 |
| Φ 3.2×25 | 42.9-53.6 | 700-800 |
| Φ 3.6×28 | 60.8-76 | 700-800 |
