A ceramic ball mill is a type of ball mill featuring liners constructed from ceramic materials. Developed and designed in conjunction with modern domestic ball milling technologies, the liners can also be fabricated from alternative materials—such as silica, rubber, or metal—with the specific type selected based on production requirements to meet diverse operational needs. Due to its relatively smaller capacity, this type of mill is typically best suited for small-batch production during the product prototyping phase; its primary function is the mixing and grinding of materials, yielding finished products of uniform fineness while simultaneously conserving energy.
It is widely applicable to the grinding of various raw materials—including quartz, ceramics, phosphate ore, iron ore, gold ore, copper-lead-zinc ore, quartzite, fluorite, barite, feldspar, and titanium ore—where high purity of the finished product is required; it is suitable for both dry and wet grinding processes.

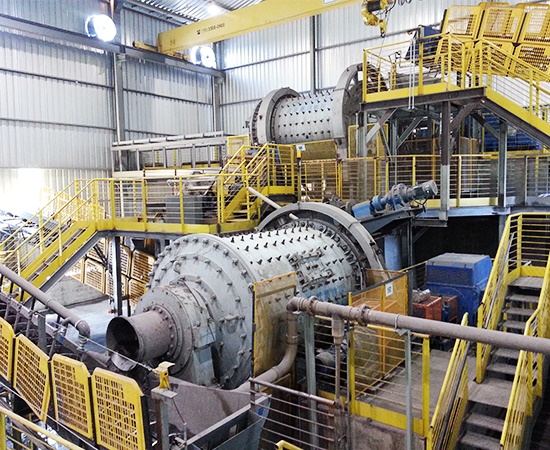

A motor drives the cylinder to rotate via a reduction mechanism. As the cylinder rotates, the crushed ore and steel balls inside are lifted to a certain height by the liners—propelled by the combined forces of friction and centrifugal force—before cascading and tumbling back down under the influence of gravity; through this process of impact and abrasion, the ore is gradually pulverized. The pulverized ore is then discharged from the cylinder through the discharge section. After the discharged material is classified in a spiral classifier to separate the finished product, the coarse sands are returned to the ball mill via a combined feeder for further grinding.
Featuring fully hydraulic operation, the system is user-friendly, easily automated, and offers significantly enhanced reliability and service life.
The discharge port is rationally designed, allowing for the optional integration of an iron remover to meet specific operational requirements.
The liners and grinding media are constructed from high-quality materials—including alumina ceramics, quartz, Silex, or specialized composites—and feature an iron-free design specifically engineered for grinding hard minerals without contamination.
The ball mill and classifier form a closed-loop system utilizing negative-pressure conveying; this minimizes dust generation, thereby reducing potential health risks to personnel.
Factory Direct Supply: Enjoy Wholesale Pricing!
If you are interested in our products, please contact us immediately.
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
Reference motor （kw） |
Liner material |
| 600×700 | 0.05 | 50 | 2.2 | Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials） |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
| Model | Feeding capacity （t/time） |
Shell rotation speed （r/min） |
| 600×700 | 0.05 | 50 |
| 800×600 | 0.075 | 42 |
| 900×1200 | 0.2 | 38.5 |
| 1300×1500 | 0.5 | 33 |
| 1500×1800 | 1.2 | 28.5 |
| 1800×2000 | 1.5 | 24 |
| 2600×2800 | 5 | 16.5 |
| 3000×3800 | 10 | 14.5 |
| 3200×4600 | 15 | 13.5 |
